Tube Size Polypropylene Hex Hangers
| Hanger w/ Polypropylene Collar | Bracket w/ Nuts & Bolts Only | Polypropylene Collar Only | Bolt Size | |||
|---|---|---|---|---|---|---|
| Size (Tube) | A | B | Part # | Part # | Part # | Part # |
| 1/2" | 2 1/4" | 1 1/16" | HS-050T-C | BS-050T-C | CP-050T | 1/4" x 3/4" |
| 3/4" | 2 5/8" | 1 3/16" | HS-075T-C | BS-075T-C | CP-075T | 1/4" x 3/4" |
| 1" | 3 3/8" | 1 9/16" | HS-100T-C | BS-100T-C | CP-100T | 5/16" x 1" |
| 1 1/2" | 3 3/4" | 2 1/8" | HS-150T-C | BS-150T-C | CP-150T | 5/16" x 1" |
| 2" | 4 7/16" | 2 5/8" | HS-200T-C | BS-200T-C | CP-200T | 5/16" x 1" |
| 2 1/2" | 4 15/16" | 3 1/8" | HS-250T-C | BS-250T-C | CP-250T | 5/16" x 1" |
| 3" | 5 9/16" | 3 5/8" | HS-300T-C | BS-300T-C | CP-300T | 5/16" x 1" |
| 4" | 6 5/8" | 4 5/8" | HS-400T-C | BS-400T-C | CP-400T | 5/16" x 1" |
| 5" | 8 1/8" | 5 5/8" | HS-500T-C | BS-500T-C | CP-500T | 5/16" x 1" |
| 6" | 9 3/16" | 6 5/8" | HS-600T-C | BS-600T-C | CP-600T | 5/16" x 1" |
| 8" | 11 3/8" | 8 3/4" | HS-800T-C | BK-800T-NH | CP-800T | 5/16" x 1" |
| 10" | 14 1/2" | 10 1/2" | HS-10.T-C | BK-10.T-NH | CP-10.T | 3/8" x 1" |
| 12" | 16 5/8" | 13" | HS-12.T-C | BK-12.T-NH | CP-12.T | 3/8" x 1" |
Typical Unfilled Polypropylene:
- Deflection Temperature (@264 psi) 120°F
- Deflection Temperature (@66 psi) 225°F
- Melting Temperature Approximately 329°F
Pipe Size Polypropylene Hex Hangers
| Hanger w/ Polypropylene Collar | Bracket w/ Nuts & Bolts Only | Polypropylene Collar Only | Bolt Size | |||
|---|---|---|---|---|---|---|
| Size (Pipe) | A | B | Part # | Part # | Part # | Part # |
| 1/2" | 3 3/8" | 1 5/8" | HS-050P-C | BS-100T-C | CP-050P | 1/4" x 3/4" |
| 3/4" | 3 3/8" | 1 5/8" | HS-075P-C | BS-100T-C | CP-075P | 1/4" x 3/4" |
| 1" | 3 3/4" | 2 1/8" | HS-100P-C | BS-150T-C | CP-100P | 5/16" x 1" |
| 1 1/4" | 3 3/4" | 2 1/4" | HS-125P-C | BS-150T-C | CP-125P | 5/16" x 1" |
| 1 1/2" | 4 7/16" | 2 5/8" | HS-150P-C | BS-200T-C | CP-150P | 5/16" x 1" |
| 2" | 4 15/16" | 3 1/8" | HS-200P-C | BS-250T-C | CP-200P | 5/16" x 1" |
| 2 1/2" | 5 9/16" | 3 1/8" | HS-250P-C | BS-300T-C | CP-250P | 5/16" x 1" |
| 3" | 6 1/16" | 4 1/4" | HS-300P-C | BS-300P-C | CP-300P | 5/16" x 1" |
| 4" | 7 1/2" | 5 5/8" | HS-400P-C | BS-400P-C | CP-400P | 5/16" x 1" |
| 5" | 8 1/2" | 6 3/8" | HS-500P-C | BS-500P-C | CP-500T | 5/16" x 1" |
| 6" | 9 7/8" | 7 3/8" | HS-600P-C | BS-600P-C | CP-600P | 5/16" x 1" |
| 8" | 11 3/8" | 9 3/8" | HS-800P-C | BK-800P-NH | CP-800T | 5/16" x 1" |
| 10" | 15 3/8" | 11 1/2" | HS-10.P-C | BK-10.P-NH | CP-10.T | 3/8" x 1" |
| 12" | 17 1/2" | 13 7/8" | HS-12.P-C | BK-12.P-NH | CP-12.T | 3/8" x 1" |
Tube Size High Temp Hex Hangers
| Hanger w/ Polypropylene Collar | Bracket w/ Nuts & Bolts Only | Polypropylene Collar Only | Bolt Size | |||
|---|---|---|---|---|---|---|
| Size (Tube) | A | B | Part # | Part # | Part # | Part # |
| 1/2" | 2 1/4" | 1 1/16" | HS-050T-H | BS-050T-C | CH-050T | 1/4" x 3/4" |
| 3/4" | 2 5/8" | 1 3/16" | HS-075T-H | BS-075T-C | CH-075T | 1/4" x 3/4" |
| 1" | 3 3/8" | 1 9/16" | HS-100T-H | BS-100T-C | CH-100T | 5/16" x 1" |
| 1 1/2" | 3 3/4" | 2 1/8" | HS-150T-H | BS-150T-C | CH-150T | 5/16" x 1" |
| 2" | 4 7/16" | 2 5/8" | HS-200T-H | BS-200T-C | CH-200T | 5/16" x 1" |
| 2 1/2" | 4 15/16" | 3 1/8" | HS-250T-H | BS-250T-C | CH-250T | 5/16" x 1" |
| 3" | 5 9/16" | 3 5/8" | HS-300T-H | BS-300T-C | CH-300T | 5/16" x 1" |
| 4" | 6 5/8" | 4 5/8" | HS-400T-H | BS-400T-C | CH-400T | 5/16" x 1" |
| 5" | 8 1/8" | 5 5/8" | HS-500T-H | BS-500T-C | CH-500T | 5/16" x 1" |
| 6" | 9 3/16" | 6 5/8" | HS-600T-H | BS-600T-C | CH-600T | 5/16" x 1" |
Typical High Temp Collar:
- Collars can withstand continuous temperature of 325°F
- Softening point = 374°F

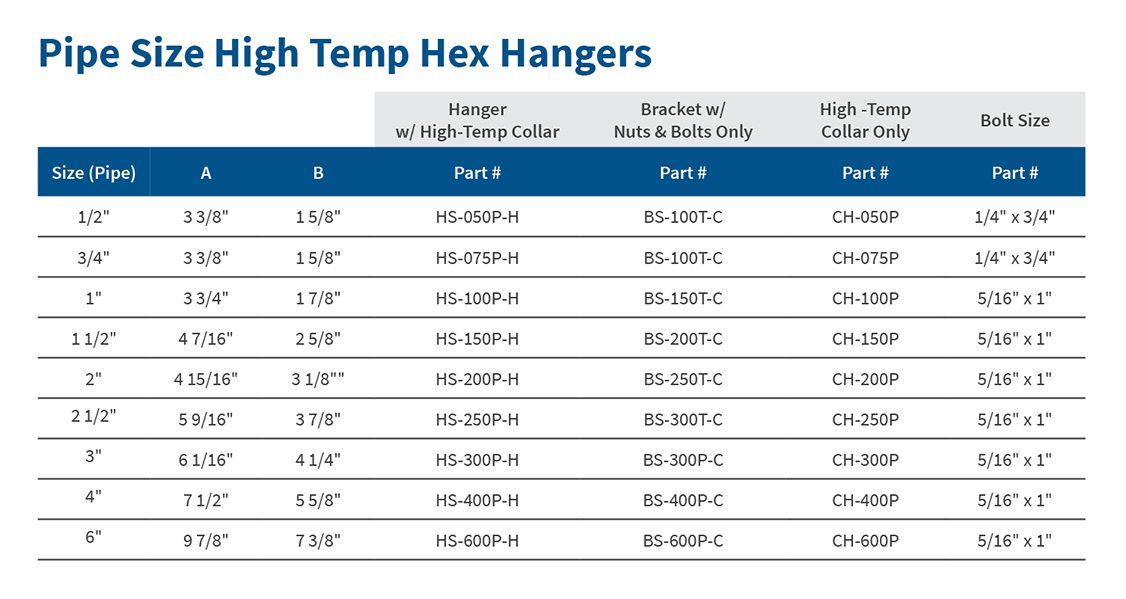

Pipe Size High Temp Hex Hangers
| Hanger w/ Polypropylene Collar | Bracket w/ Nuts & Bolts Only | Polypropylene Collar Only | Bolt Size | |||
|---|---|---|---|---|---|---|
| Size (Tube) | A | B | Part # | Part # | Part # | Part # |
| 1/2" | 3 3/8" | 1 5/8" | HS-050P-H | BS-100T-C | CH-050P | 1/4" x 3/4" |
| 3/4" | 3 3/8" | 1 5/8" | HS-075P-H | BS-100T-C | CH-075P | 1/4" x 3/4" |
| 1" | 3 3/4" | 1 7/8" | HS-100P-H | BS-150T-C | CH-100P | 5/16" x 1" |
| 1 1/2" | 4 7/16" | 2 5/8" | HS-150P-H | BS-200T-C | CH-150P | 5/16" x 1" |
| 2" | 4 15/16" | 3 1/8" | HS-200P-H | BS-250T-C | CH-200P | 5/16" x 1" |
| 2 1/2" | 5 9/16" | 3 7/8" | HS-250P-H | BS-300T-C | CH-250P | 5/16" x 1" |
| 3" | 6 1/16" | 4 1/4" | HS-300P-H | BS-300P-C | CH-300P | 5/16" x 1" |
| 4" | 7 1/2" | 5 5/8" | HS-400P-H | BS-400P-C | CH-400P | 5/16" x 1" |
| 6" | 9 7/8" | 7 3/8" | HS-600P-H | BS-600P-C | CH-600P | 5/16" x 1" |
Tube Size Metal Detectable Hex Hangers
| Hanger w/ Polypropylene Collar | Bracket w/ Nuts & Bolts Only | Polypropylene Collar Only | Bolt Size | |||
|---|---|---|---|---|---|---|
| Size (Tube) | A | B | Part # | Part # | Part # | Part # |
| 1/2" | 2 1/4" | 1 1/16" | HS-050T-M | BS-050T-C | CM-050T | 1/4" x 3/4" |
| 3/4" | 2 5/8" | 1 3/16" | HS-075T-M | BS-075T-C | CM-075T | 1/4" x 3/4" |
| 1" | 3 3/8" | 1 9/16" | HS-100T-M | BS-100T-C | CM-100T | 5/16" x 1" |
| 1 1/2" | 3 3/4" | 2 1/8" | HS-150T-M | BS-150T-C | CM-150T | 5/16" x 1" |
| 2" | 4 7/16" | 2 5/8" | HS-200T-M | BS-200T-C | CM-200T | 5/16" x 1" |
| 2 1/2" | 4 15/16" | 3 1/8" | HS-250T-M | BS-250T-C | CM-250T | 5/16" x 1" |
| 3" | 5 9/16" | 3 5/8" | HS-300T-M | BS-300T-C | CM-300T | 5/16" x 1" |
| 4" | 6 5/8" | 4 5/8" | HS-400T-M | BS-400T-C | CM-400T | 5/16" x 1" |
| 6" | 9 3/16" | 6 5/8" | HS-600T-M | BS-600T-C | CM-600T | 5/16" x 1" |
Typical Metal Detectable Collar:
- Deflection Temperature (@66 psi) 215°F
- Melting Temperature Approximately 300°F
Commercial and industrial Stainless Steel Hex Hangers from AWI Manufacturing are the proven leader since 1970. Manufactured in house in our facility in Winsted, MN.
